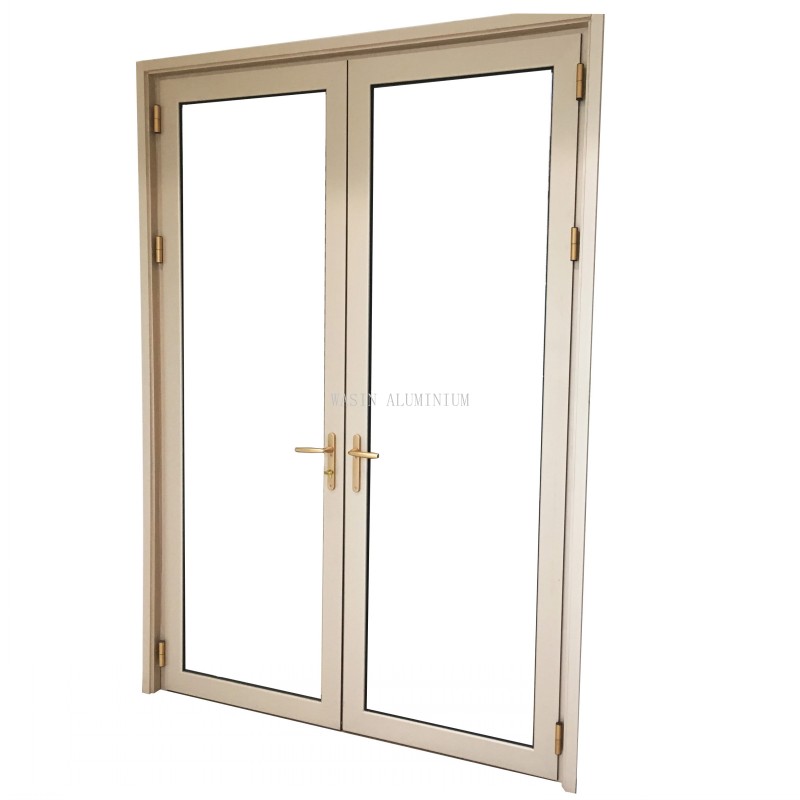

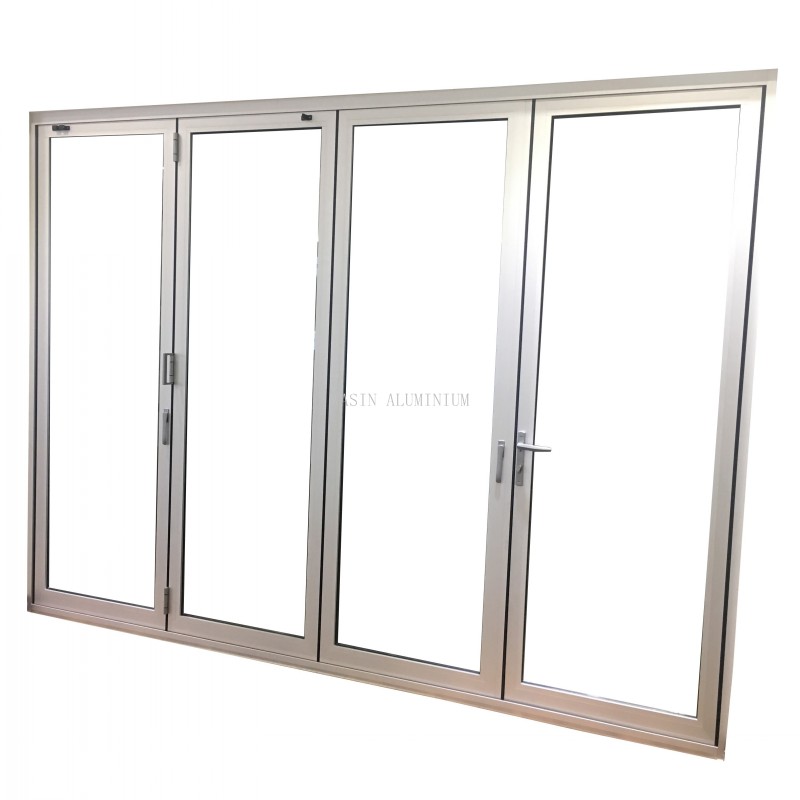

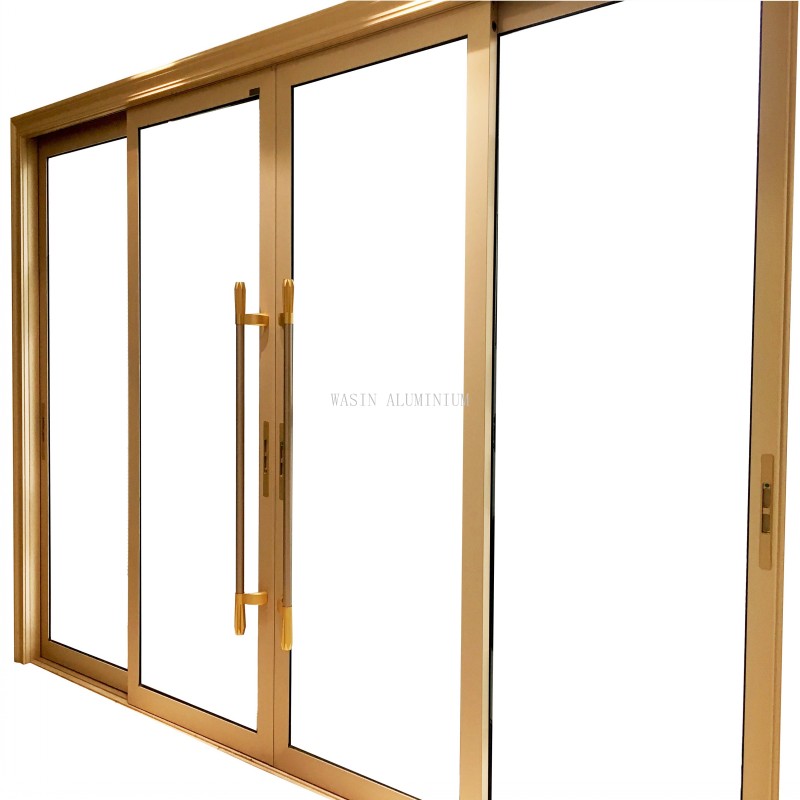

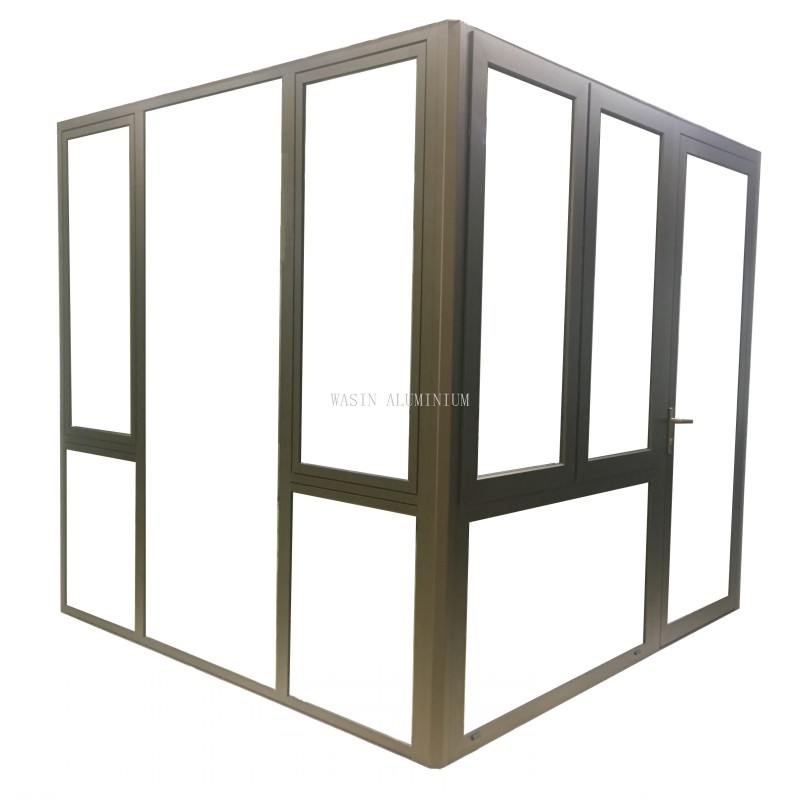

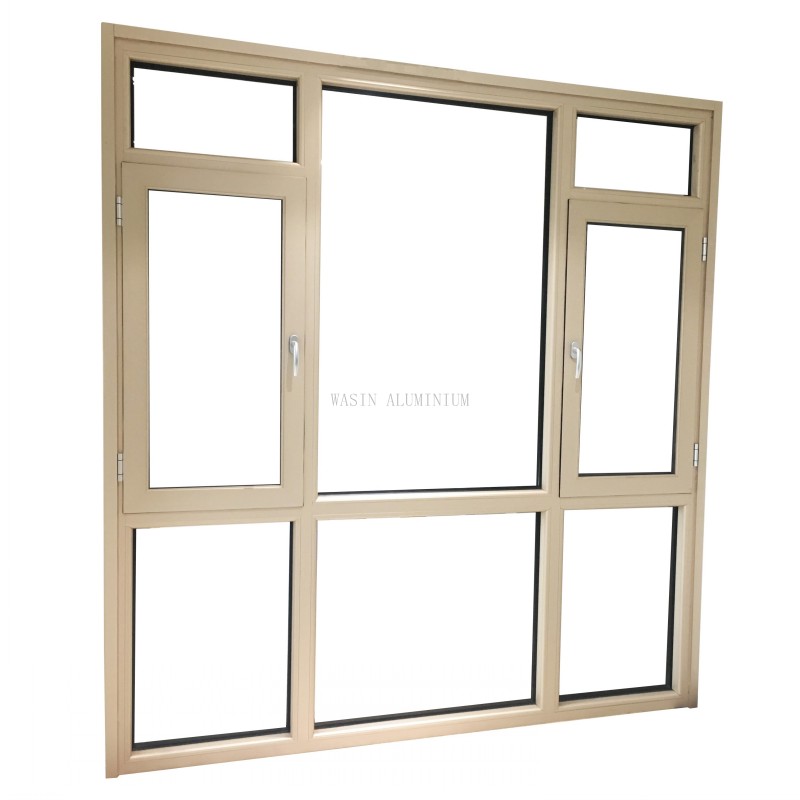

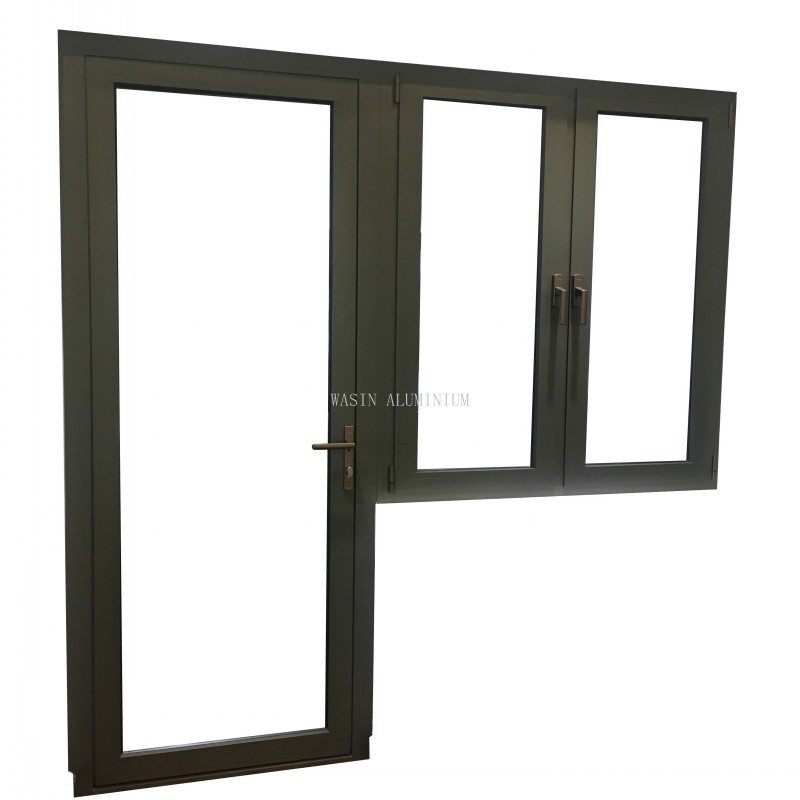

Aluminum window and door


1. Material: 6063 T5 or T6 aluminium alloy

2. Surface treatment & color:
 a) Powder coated: whiteblueyellowbrown
 b) Anodized & electrophoresis: silverchampagnebronzeblack
 c) Matt electro-deposition: silvergreygoldenblack
 d) Wood transfer: oakwillowteakyellow pearwalnut
 e) PVDF whitegreybrownblack
 f) Polish & brush: silverchampagnebronzegolden

3. Profile thickness: 1.0 ~ 2.0mm

4. Glass: Singledouble or triple glass; heat reflect & coating glasslaminated glass; low-e glass; louver glass

5. Application: Real estimatevillashotelschoolhospital et

6. Product name:Aluminum window and door

Product Details
Aluminum window and door

Aluminium alloy 6063 T5 or T6 aluminium alloy
Thickness Mostly from 1.0 ~ 2.0 mm
Surface treatment & color a) Anodized & electrophoresis: silver、champagne、golden、bronze、brown、black
b) Matt electro-deposition: golden、grey、silver、black
c)Powder coated:
white、blue、yellow、brown or customized
d) Wood transfer:
oak、wilow、teak、yellow pear、walnut or customized
e) PVDF double or triple coating: white、grey、brown、black or customized
f) Polish & brush:
Glass Single、double or triple glass; heat reflect & coating glass;laminate glass; low-e glass; louver glass
Factory capacity:  Monthly output about 3000 square meter; Max monthly capacity about 5000 tons.
Aluminum frame mechanical characteristic (6063-T5) Vickers hardness (HV)≥58
Webster hardness (HW)≥8
Tensile strength: no less than 160 N/mm²
Anodizing surface characteristic Average thickness of anodize film: no less than 10 μm
Partial thickness of anodize film: no less than 8 μm
Anodize sealing quality: no less than 30 mg/dm²
Hardness (Pential scratch testing): ≥ 3H
CASS test (24h):≥ 9 grade
Alkali resistance(24h):no less than 9 grade
Wear resistance(sand drop testing): ≥300 g/μm
Powder coated surface  characteristic Coating indentation hardness: ≥ 80
Coating thickness: 60 ~ 120 μm
Smallest local thickness: > 40 μm
adhension (dry、wet、boiling water): 0 grade
Wear resistance(sand drop testing): ≥0.8 L/μm
Hydrochloric Acid resistance: no blistering and obvious change
Solvent resistance: ≥ 3 grade
Detergent resistance: no blistering, no loss of film adhension and obvious change
Mortar resistance: no loss of film adhension and no visual change in appearance
Boiling water resistance: no air bubble、 wrinkle、cracks、falls off and color change on test specimen
Lead time About 30 days                                          (aluminium、glass and accessories production about 15 days;  window and door fabrication about 13 days, packing about 2 days)

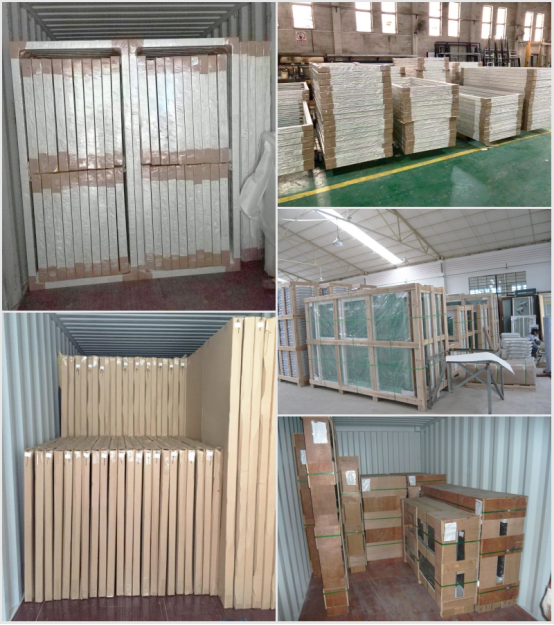

EPE form packing:
1) Each item corner protected by paper or form,
2) Each item wrap by EPE form and shrink film or thick paper
3) Numbers of item pack by wooden case (optional)
